K-Means Clustering

First Encounter

While reading Professor Wencen Wu's paper Reinforcement learning-based dynamic field exploration and reconstruction using multi-robot systems for environmental monitoring, I came across the term "k-means clustering."

What is K-Means Clustering?

K-means clustering is an algorithmic way of organizing unlabeled data into a certain number of clusters, based on the similarity between different data points.

Implementation Algorithm

To do this (for a dataset of 2 dimensions) you need to execute the following steps:

1. Pick the number of centroids (number of clusters) and a random location for each of the centroids
2. Assign each data value to its nearest centroid
3. Recenter the centroid based on the points associated with it (average "x" and "y" values)
4. Repeat this loop until the location of the centroid no longer changes

Implementation

First, a helper function to render a graph of the data:

import matplotlib.pyplot as plt
import matplotlib.patches as mpatches

def render_graph(data):
    """
    Renders a graph based on an array of objects with x, y, shape, and color attributes.

    Args:
        data (list): A list of dictionaries, where each dictionary represents an object
                     with 'x', 'y', 'shape' (circle or cross), and 'color' (red, green,
                     blue, yellow, black) attributes.
    Returns:
        None
    """
    plt.close('all')
    fig, ax = plt.subplots(figsize=(8, 8))

    ax.set_facecolor('white')

    ax.set_xlim(0, 250)
    ax.set_ylim(0, 250)

    ax.set_xticks(range(0, 251, 10))
    ax.set_yticks(range(0, 251, 10))

    ax.spines['left'].set_color('darkgrey')
    ax.spines['bottom'].set_color('darkgrey')
    ax.spines['right'].set_visible(False)
    ax.spines['top'].set_visible(False)

    ax.tick_params(axis='x', colors='darkgrey')
    ax.tick_params(axis='y', colors='darkgrey')

    for obj in data:
        x = obj['x']
        y = obj['y']
        shape = obj['shape']
        color = obj['color'].lower()

        marker = ''
        if shape == 'circle':
            marker = 'o'
        elif shape == 'cross':
            marker = 'x'
        else:
            print(f"Warning: Unknown shape '{shape}'. Skipping point at ({x},{y})")
            continue

        ax.plot(x, y, marker=marker, color=color, markersize=10, linestyle='')

    plt.xlabel('Height in CM', color='darkgrey')
    plt.ylabel('Weight in LB', color='darkgrey')
    plt.title('Graph Visualization', color='darkgrey')
    plt.grid(True, linestyle='--', alpha=0.7, color='lightgray')
    plt.gca().set_aspect('equal', adjustable='box')
    plt.xticks(rotation=90)
    plt.show()

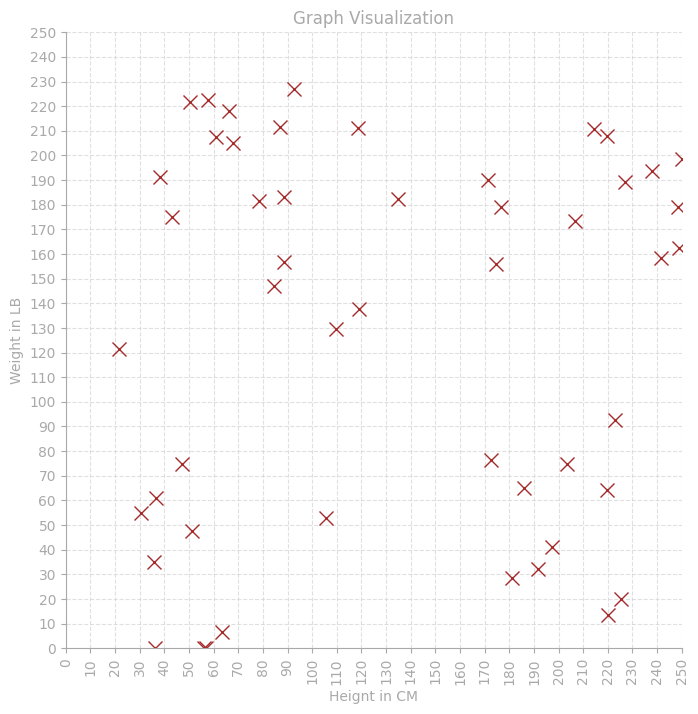

Next, load the dataset and plot the raw points:

from google.colab import drive
drive.mount('/content/drive')

import pandas as pd

file_path = '/content/drive/MyDrive/colab_notebooks/sample_data/kmeans-tshirt/kmeans_dataset.csv'
df_tshirt_data = pd.read_csv(file_path)

persons = []

for index, row in df_tshirt_data.head(50).iterrows():
    person = dict(x=row['x'].item(), y=row['y'].item(), shape='cross', color='brown')
    persons.append(person)

render_graph(persons)

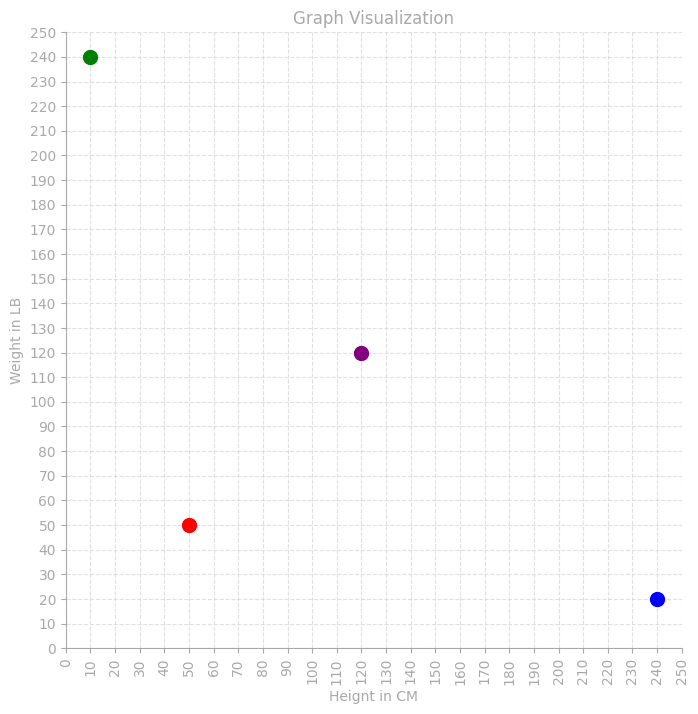

Next, create four centroids at fixed starting positions:

centroids = []
centroid1 = {'x': 50, 'y': 50, 'shape': 'circle', 'color': 'red'}
centroid2 = {'x': 240, 'y': 20, 'shape': 'circle', 'color': 'blue'}
centroid3 = {'x': 10, 'y': 240, 'shape': 'circle', 'color': 'green'}
centroid4 = {'x': 120, 'y': 120, 'shape': 'circle', 'color': 'purple'}

centroids.append(centroid1)
centroids.append(centroid2)
centroids.append(centroid3)
centroids.append(centroid4)

render_graph(centroids)

Then, associate each point with its nearest centroid and recenter the centroids based on their assigned points:

def nearest_centroid_color(person):
    least_dist = 125000
    least_dist_color = ''
    for index, centroid in enumerate(centroids):
        distance = ((centroid["x"] - person["x"])**2 + (centroid["y"] - person["y"])**2)**0.5

        if distance < least_dist:
            least_dist = distance
            least_dist_color = centroid["color"]

    return least_dist_color

def assign_color_to_person():
    for person in persons:
        closest_centroid_color = nearest_centroid_color(person)
        person["color"] = closest_centroid_color

def relocate_centroids():
    for centroid in centroids:
        count = 0
        sum_x = 0
        sum_y = 0

        for person in persons:
            if person["color"] == centroid["color"]:
                count += 1
                sum_x += person["x"]
                sum_y += person["y"]

        if count != 0:
            centroid["x"] = sum_x / count
            centroid["y"] = sum_y / count

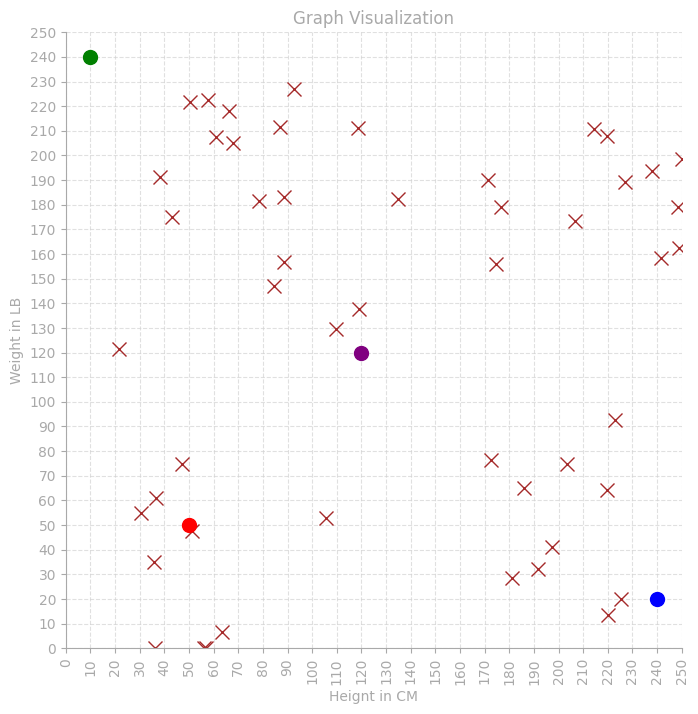

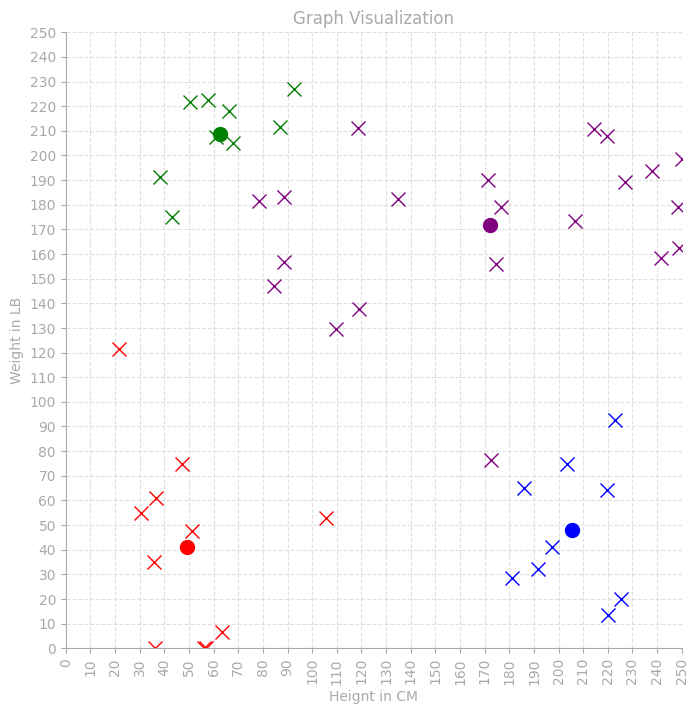

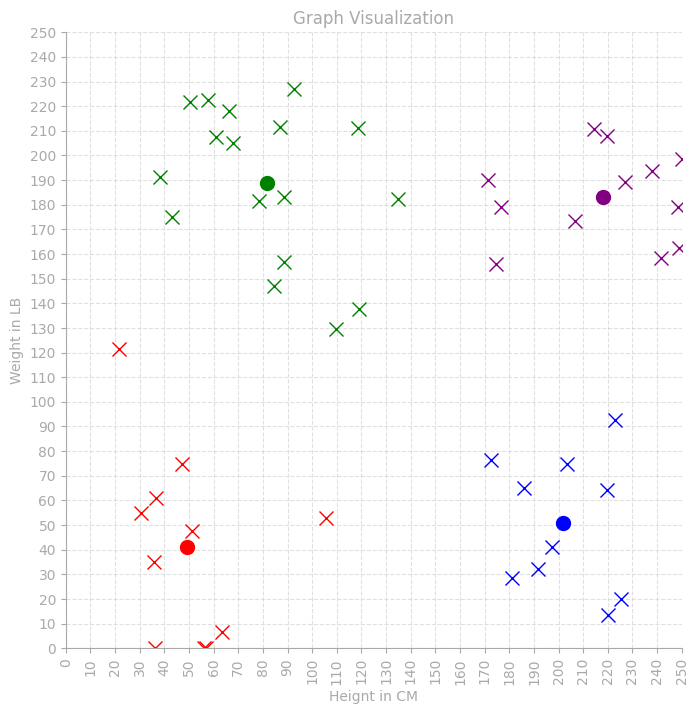

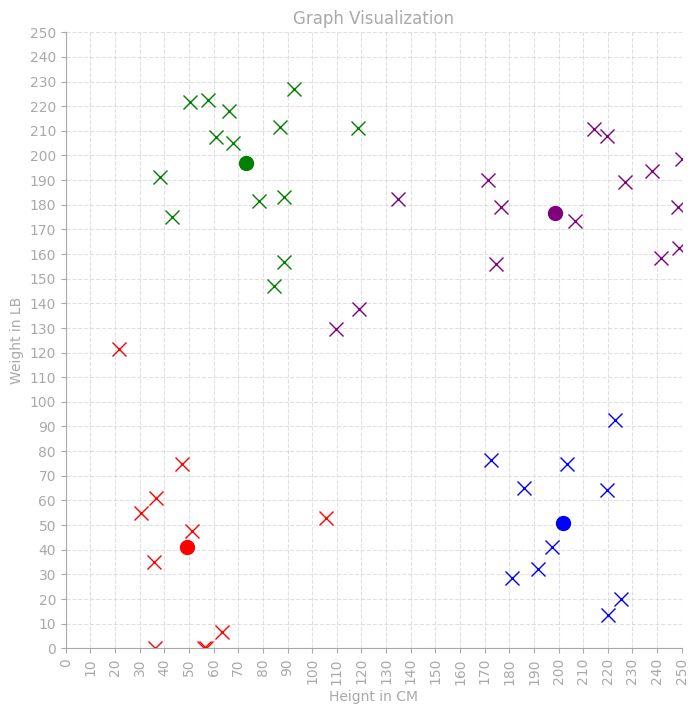

Finally, iterate the algorithm, reassigning points and recentering the centroids each round:

print("initial: ")
render_graph(persons + centroids)

def kmeans_clustering():
    count = 1
    while count <= 3:
        print("iterations: " + str(count))
        assign_color_to_person()
        relocate_centroids()
        render_graph(persons + centroids)
        count += 1

kmeans_clustering()
